New MSD 6AL Controller Box for VW Billet Distributors. Produces huge spark energy with minimal current draw. Features built in rev limiter.

California Prop 65 Warning:

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Description
  • Additional Information
  • Reviews

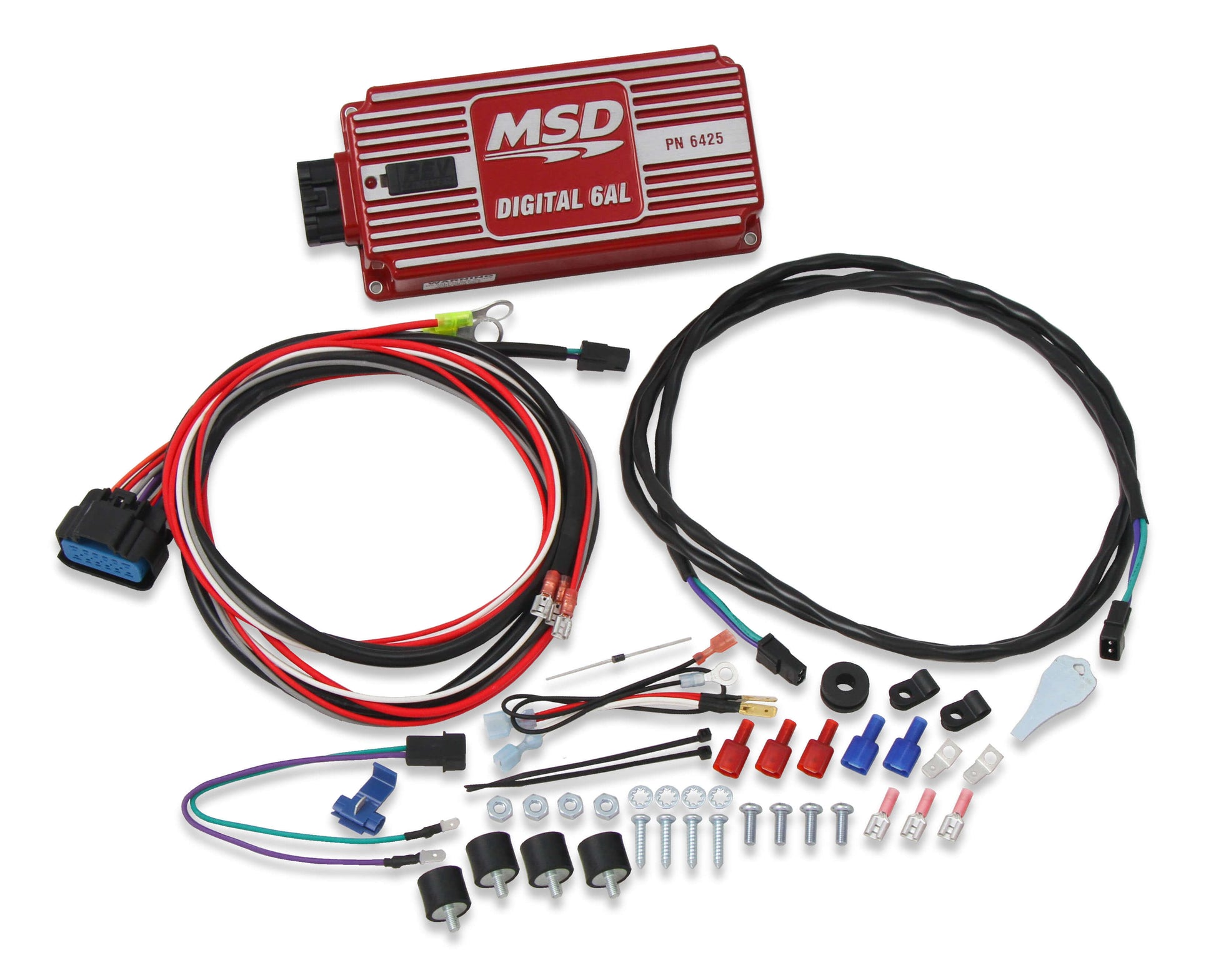

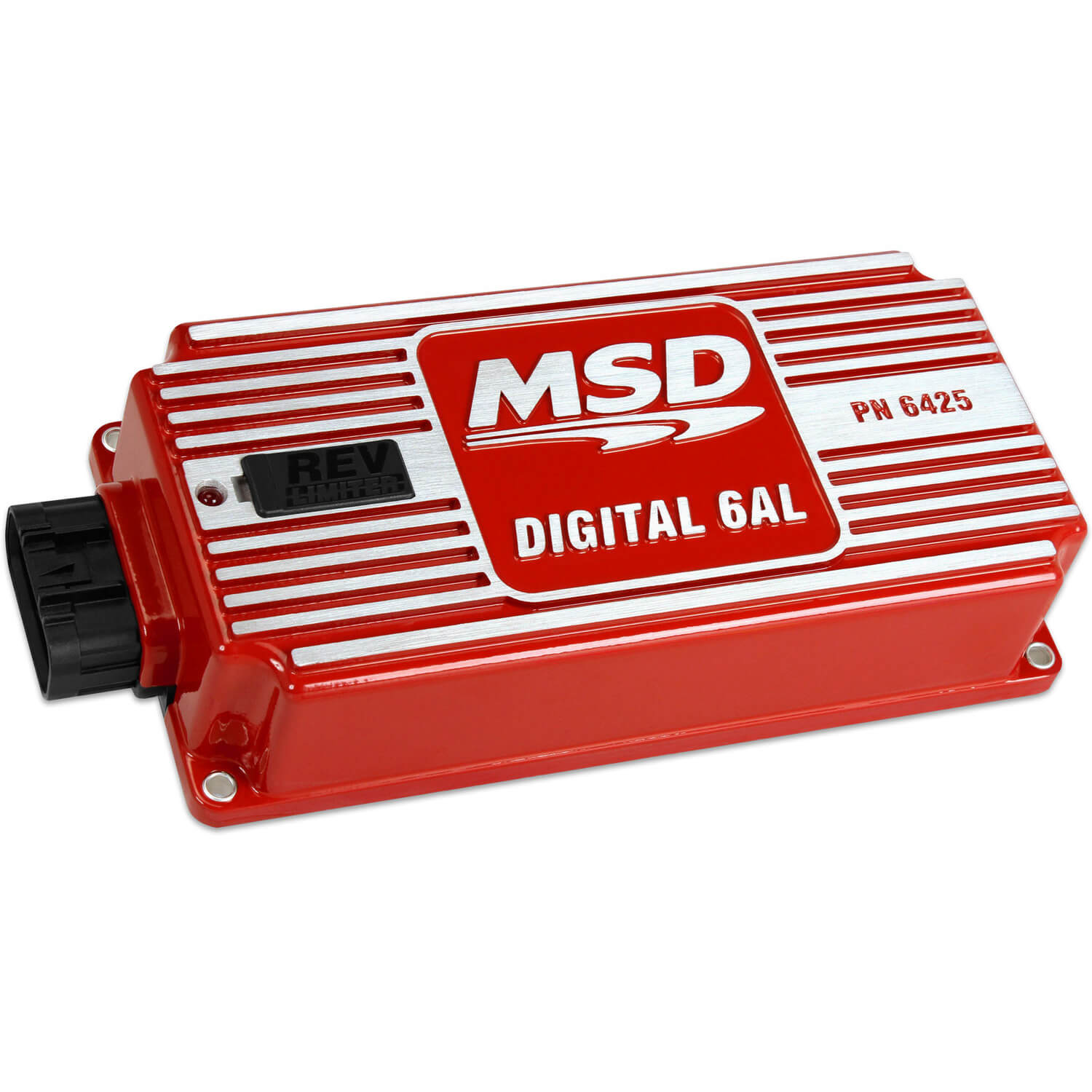

MSD 6AL Ignition Control Module for the VW 8485 MSD Billet Distributor. This ignition controller contains a microprocessor that precisely controls firing and your rev limiter. The biggest advantage to an MSD setup is the powerful spark that it can produce to more efficiently burn more fuel in your engine resulting in more power. This ignition box is great for those looking for all out race performance on the drag strip and off road. It is also great for those trying to squeeze every pony out of their street car.

Specs from MSD:

  • Current Draw .7 Amp per 1,000 RPM
  • Emission Code 1
  • Features Rev Limiter
  • Primary Voltage 520-540 Volts
  • Product Type 6AL Ignition
  • RPM Range 15,000 RPM with 14.4 Volts
  • Secondary Voltage 45,000 Volts
  • Spark Energy 135-145 mJ per spark
  • Voltage Required 12-15 Volts, 7 Volt Start
  • Weight and Size 1.7 lbs 8 inches long x 4 inches wide x 1.825 inches height
