Rear Suspension Bushings

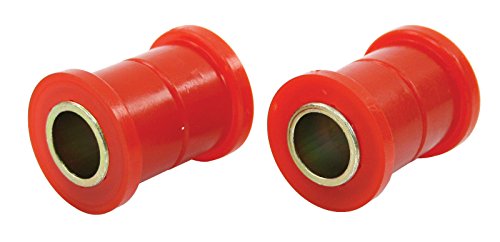

Spring Plate Bushings & Trailing Arm Bushings for VW Beetle, Karmann Ghia, Dune Buggy, Sand Rail, and Baja Bugs. Spring plate bushings sit between the spring plate and rear torsion housing. Trailing arm bushings ride in the pivot point of the trailing arm.

Spring Plate Bushing sizes:
1949-60 Bug/Ghia: 1-7/8" Round Inner - 1-7/8" Knobby Outer
1961-68 Bug/Ghia: 1-7/8" Knobby Inner - 1-3/4" Knobby Outer
1968-79 Bug/Ghia: 1-7/8" Knobby Inner - 1-7/8" Round Outer
1973-74 Thing: 1-7/8" Knobby Inner - 1-7/8" Round Outer
1961-68 Type 3: 1-7/8" Knobby Inner - 1-7/8" Knobby Outer
1969-73 Type 3: 1-7/8" Knobby Inner - 1-7/8" Round Outer

Aftermarket Spring Plate Bushing ID size:
Non-adjustable: 1-3/4" Inner - 1-7/8" Outer
Adjustable: 2" Inner - 1-7/8" Outer
