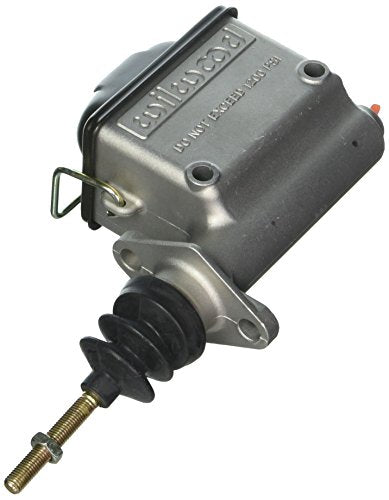

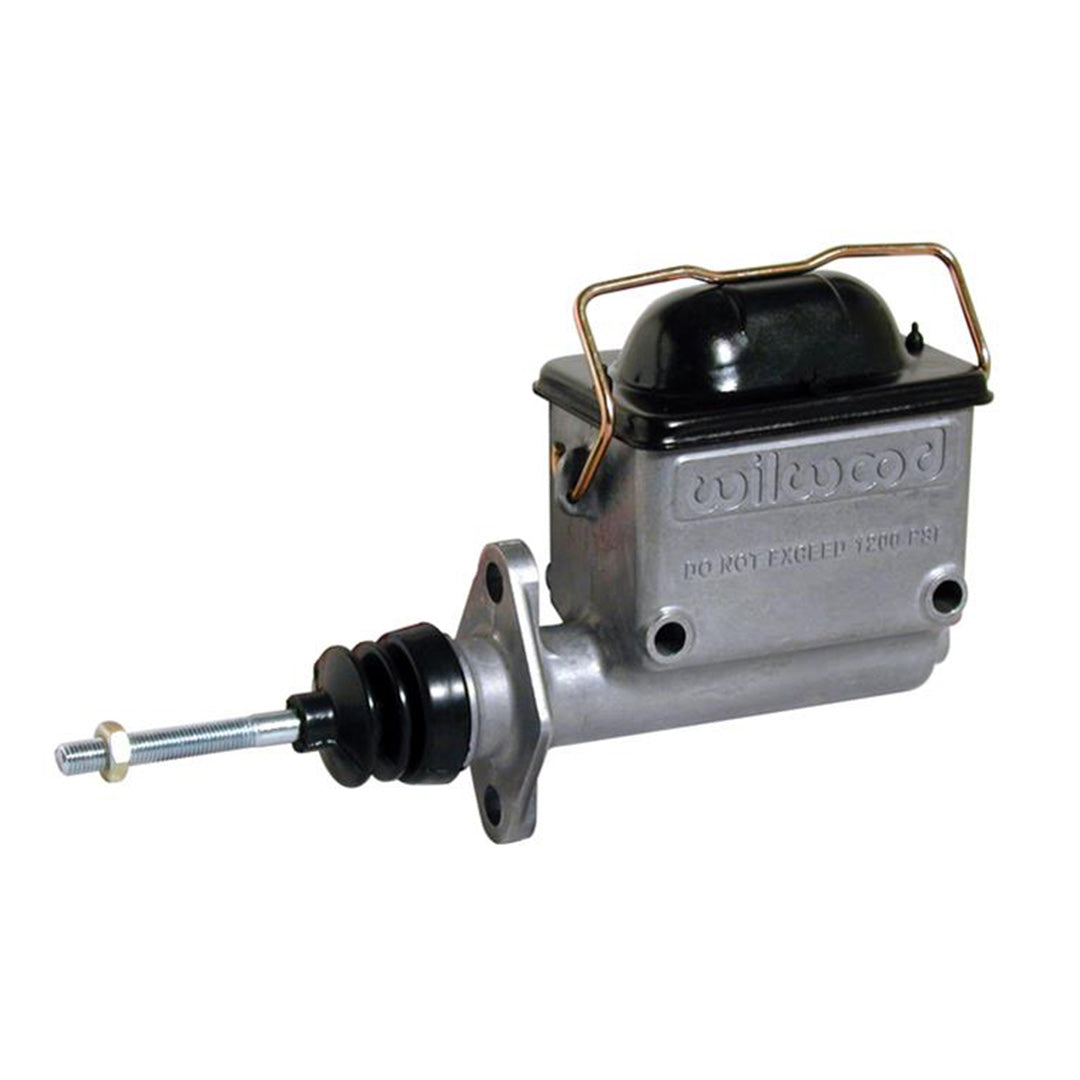

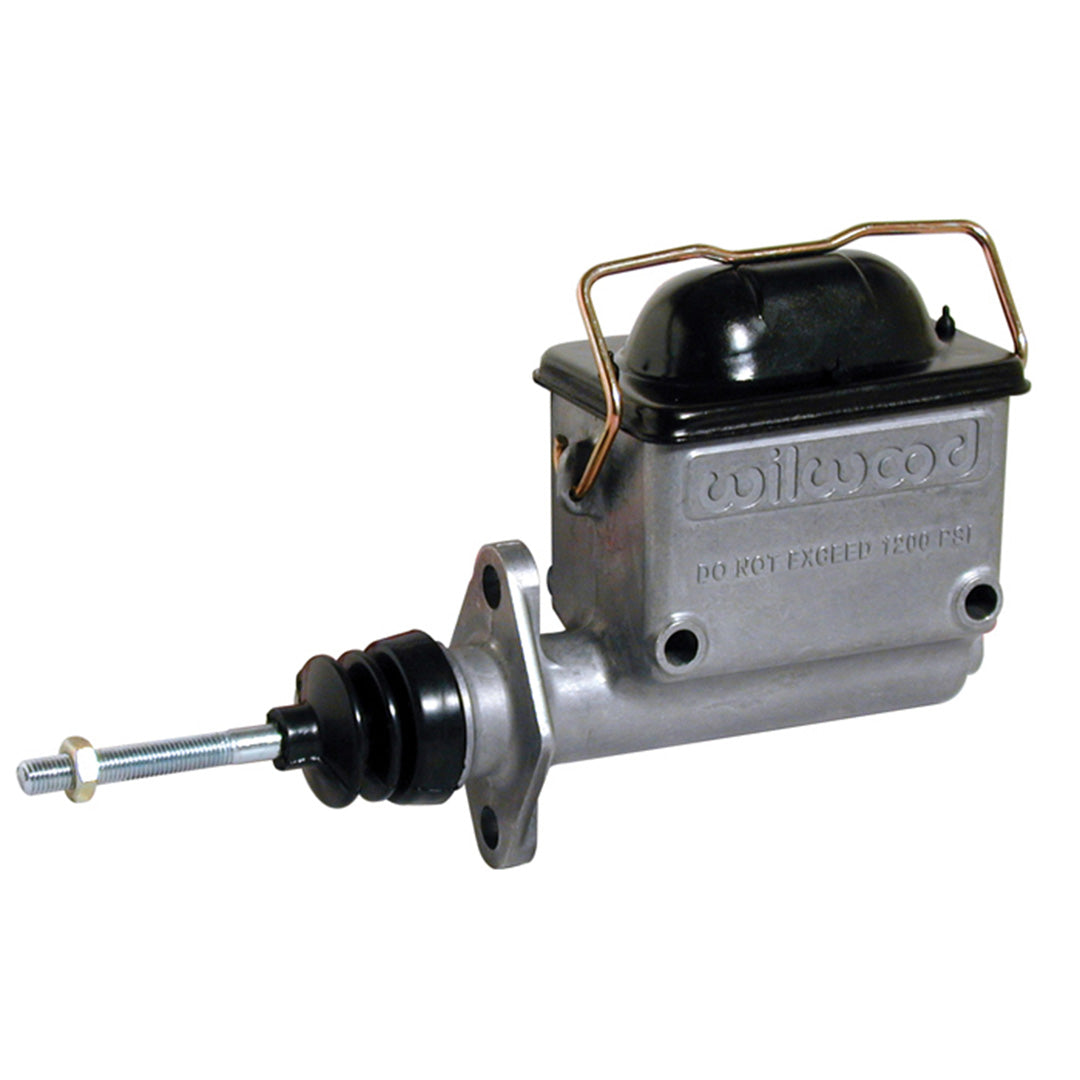

Wilwood 3/4 Inch Master Cylinder Square Reservoir - 260-6764
Wilwood 3/4 Inch Master Cylinder Square Reservoir - 260-6764
Wilwood 3/4 Inch Master Cylinder Square Reservoir - 260-6764
Wilwood 3/4 Inch Master Cylinder Square Reservoir - 260-6764
  • Load image into Gallery viewer, Wilwood 3/4 Inch Master Cylinder Square Reservoir - 260-6764
  • Load image into Gallery viewer, Wilwood 3/4 Inch Master Cylinder Square Reservoir - 260-6764
  • Load image into Gallery viewer, Wilwood 3/4 Inch Master Cylinder Square Reservoir - 260-6764
  • Load image into Gallery viewer, Wilwood 3/4 Inch Master Cylinder Square Reservoir - 260-6764

Wilwood 3/4 Inch Master Cylinder Square Reservoir - 260-6764

Write a Review Write a Review

Price:
$89.88

Price:

Special Price:
$89.88

Out of Stock
Unit price
per
SKU WIL-2606764

Stock Remaining: 2

California Prop 65 Warning:

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Description
  • Additional Information
  • Reviews

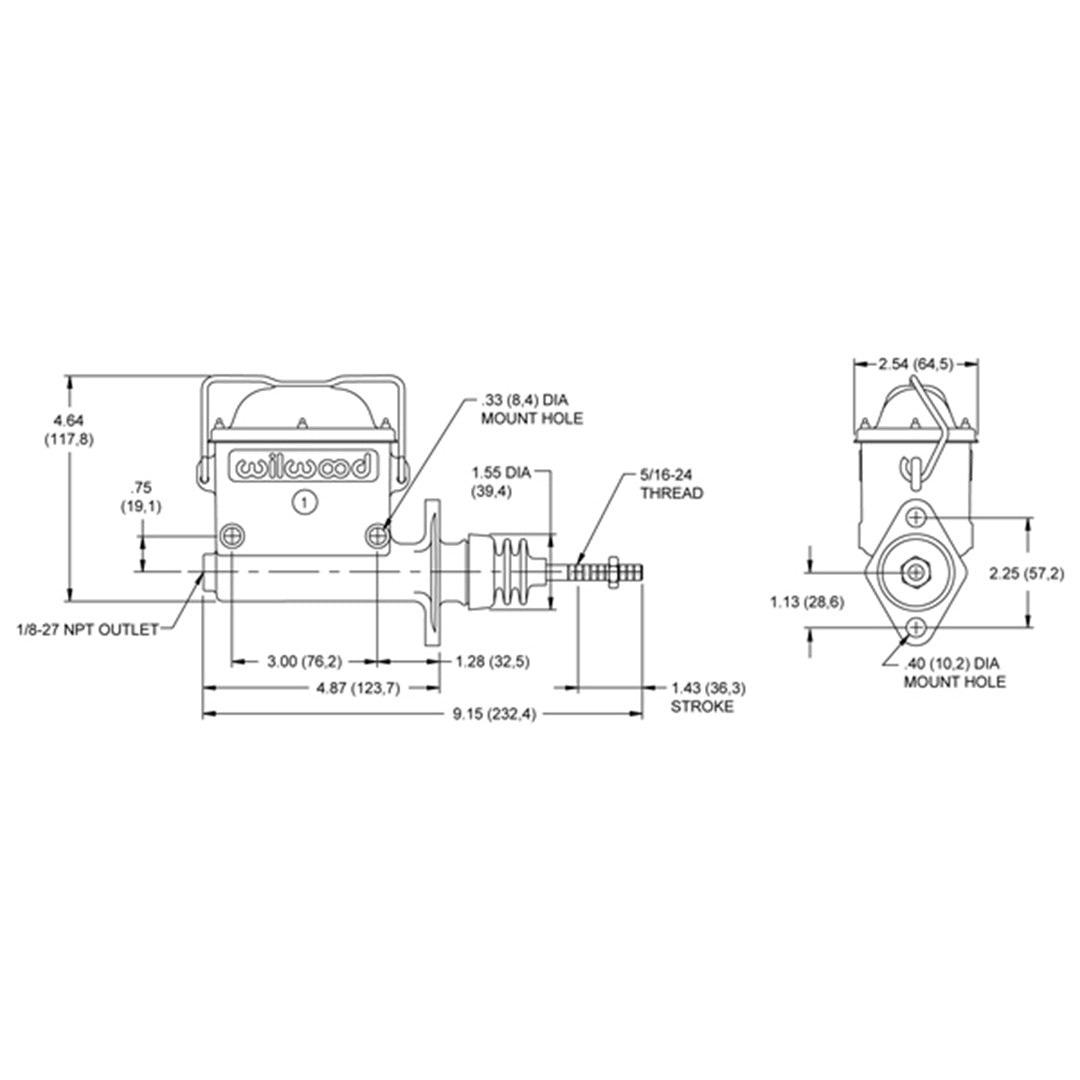

Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. . With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
WIL-2606764
SKU WIL-2606764
