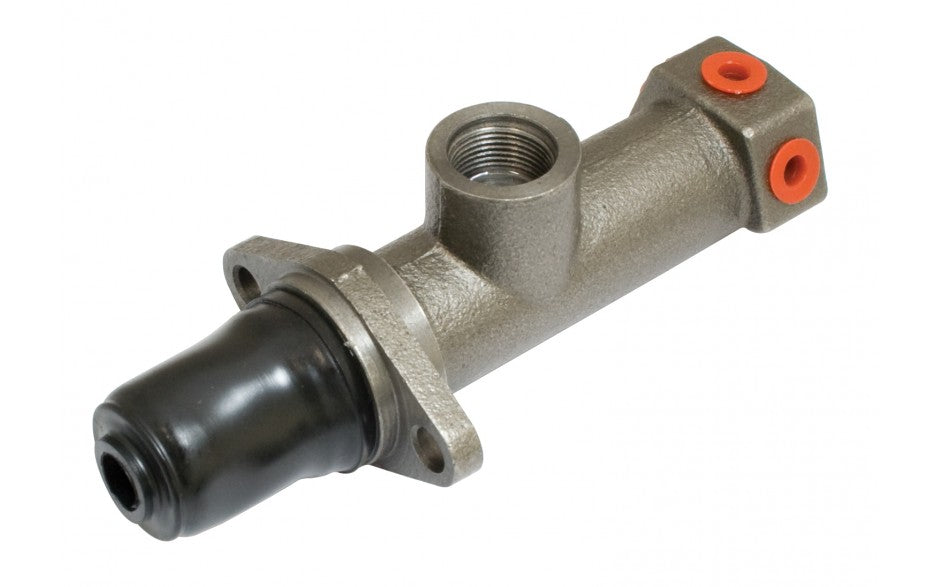

Empi 22mm Single Circuit Master Cylinder - No Residual Valve - 98-6022-B

Empi 98-6022-B single circuit 22mm bore master cylinder only. This master cylinder is a non-residual valve style recommended for disc brakes only. This 22mm bore will work with 2-wheel or 4-wheel disc brake circuits. These single circuit master cylinders are the same size as 1966-and-earlier VW Bus, and can be easily fitted into early Beetle or dune buggy chassis for a larger bore master cylinder upgrade.

Compatible with screw-in style reservoir such as EMP-006020B or EMP-211-611-301C available separately.

Tech Tip we would recommend this large-bore, non-residual valve master cylinder as an upgrade for single circuit early Beetle with disc brakes, or VW-based dune buggies with disc brakes. We set these up with forward port for brake switch, left port for rear brake line to tee, right and top ports for front wheels. If only using rear brakes, use 2 separate ports for left+right wheels, and plug unused port.

Empi 98-6022-B, 986022B
