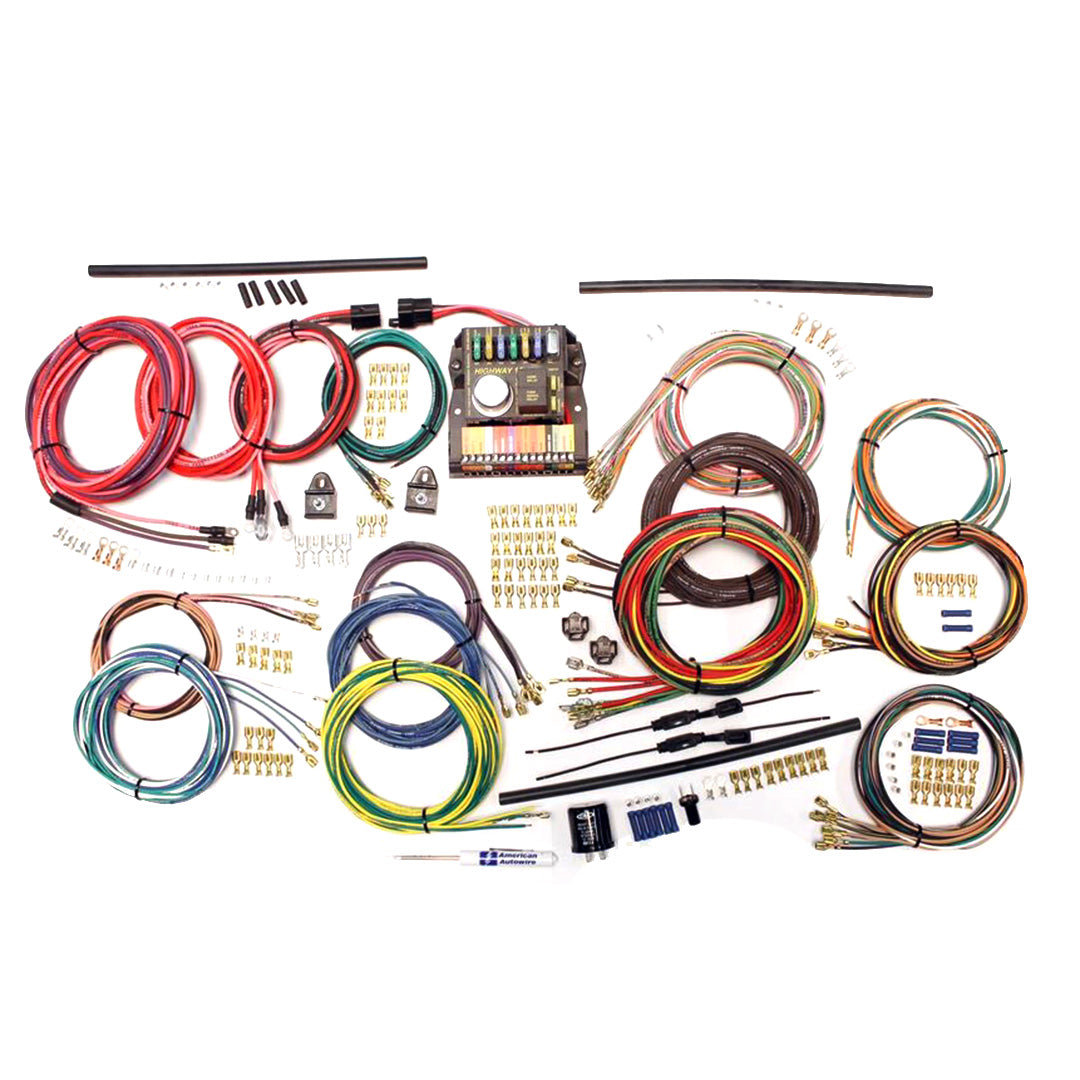

American Autowire Classic Update kits are designed for projects that require more circuits than would have been available in an original chassis harness. Each kit is designed to include all the basics needed to rewire a vehicle from headlight to tail light, and in the case of our Volkswagen Beetle kit, is designed only for vehicles using a 12 volt electrical system.

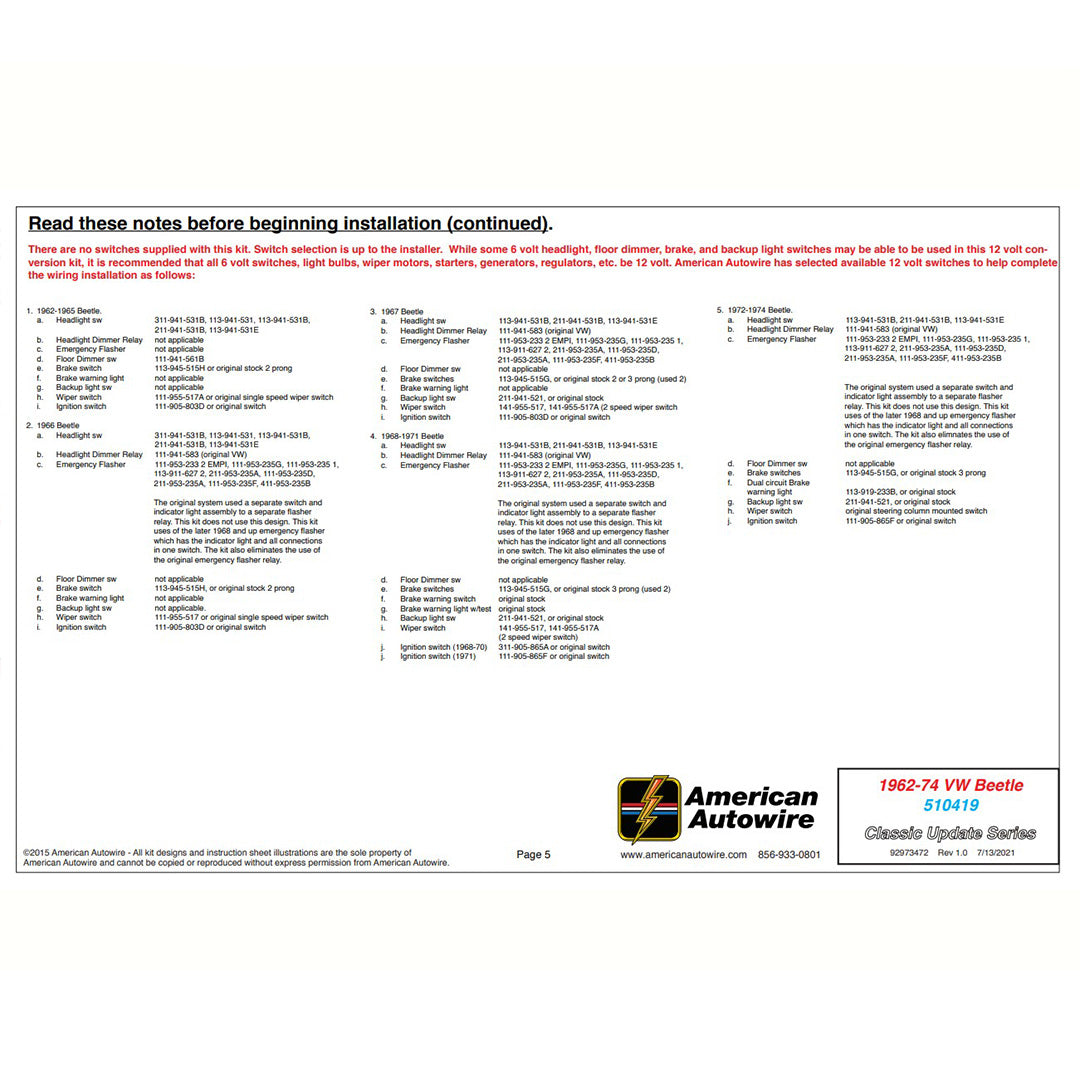

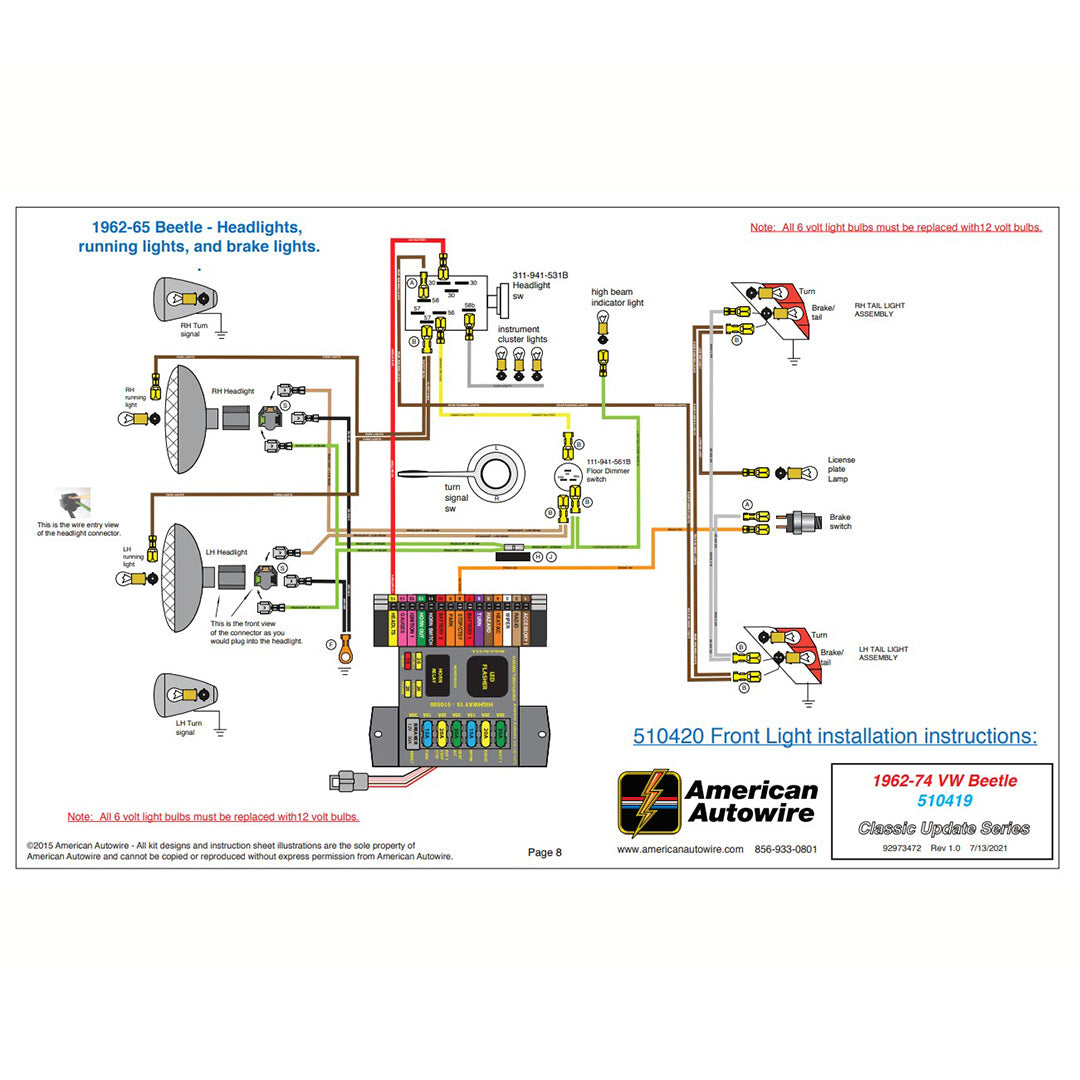

This kit includes several variations of wiring diagrams for various model years of VW Beetle. Model years 1962-65, 1966, 1967, 1968-69, 1970-71, 1972, 1973, and 1974 each have their own version of wiring diagram included in the instruction manual (also available as a PDF online).


*Updated ATC fuse panel and fuses, along with modern GXL wire throughout. Wire functions are labeled every 3 to 5 inches.
*Engine and front light harness with extra-long leads for custom routing and updated engine and transmission combinations.

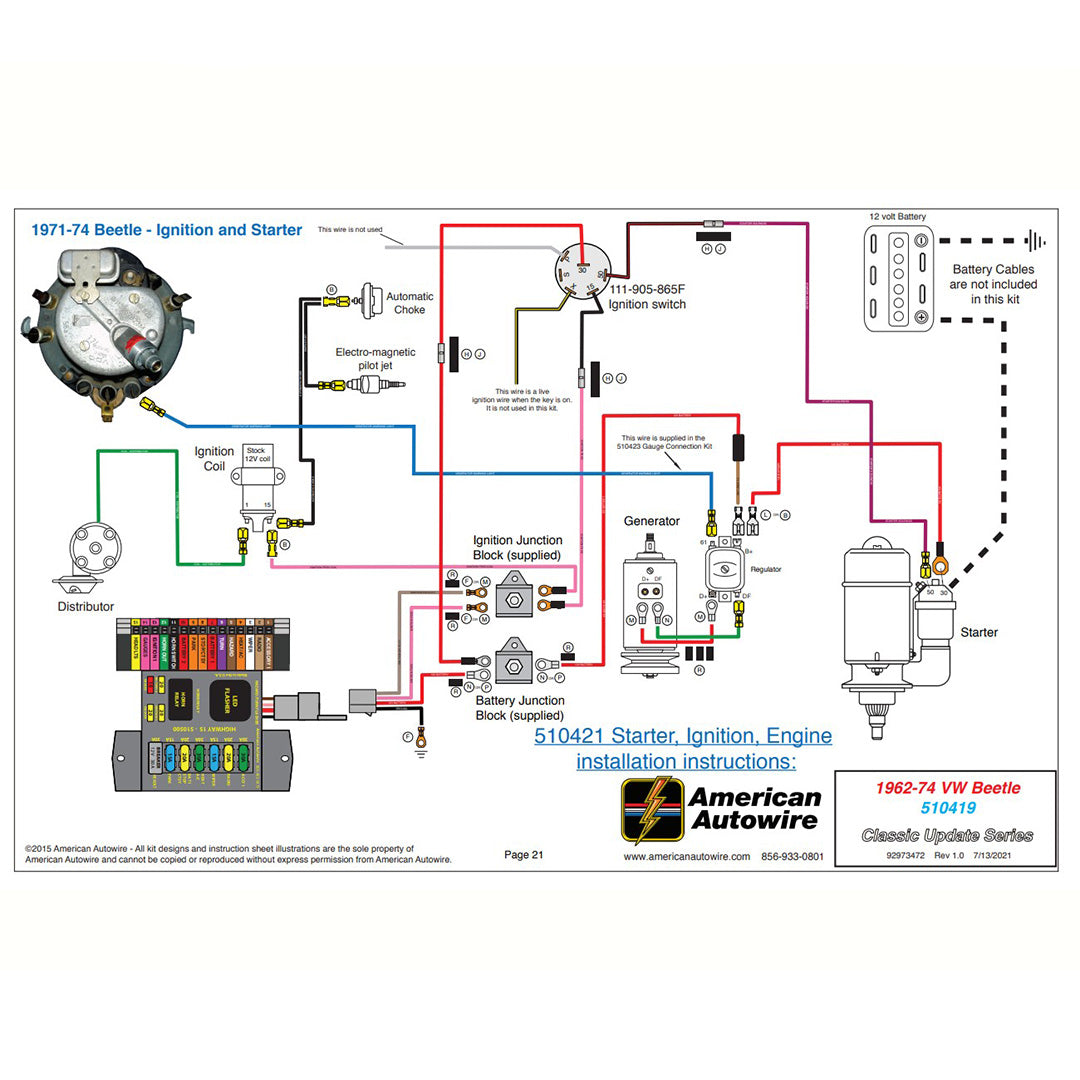

*Battery and ignition junction blocks for easy power distribution.
*Rear body wiring with extra-long leads allows for custom routing.
*System power supplied by a heavy gauge fusible link feed.

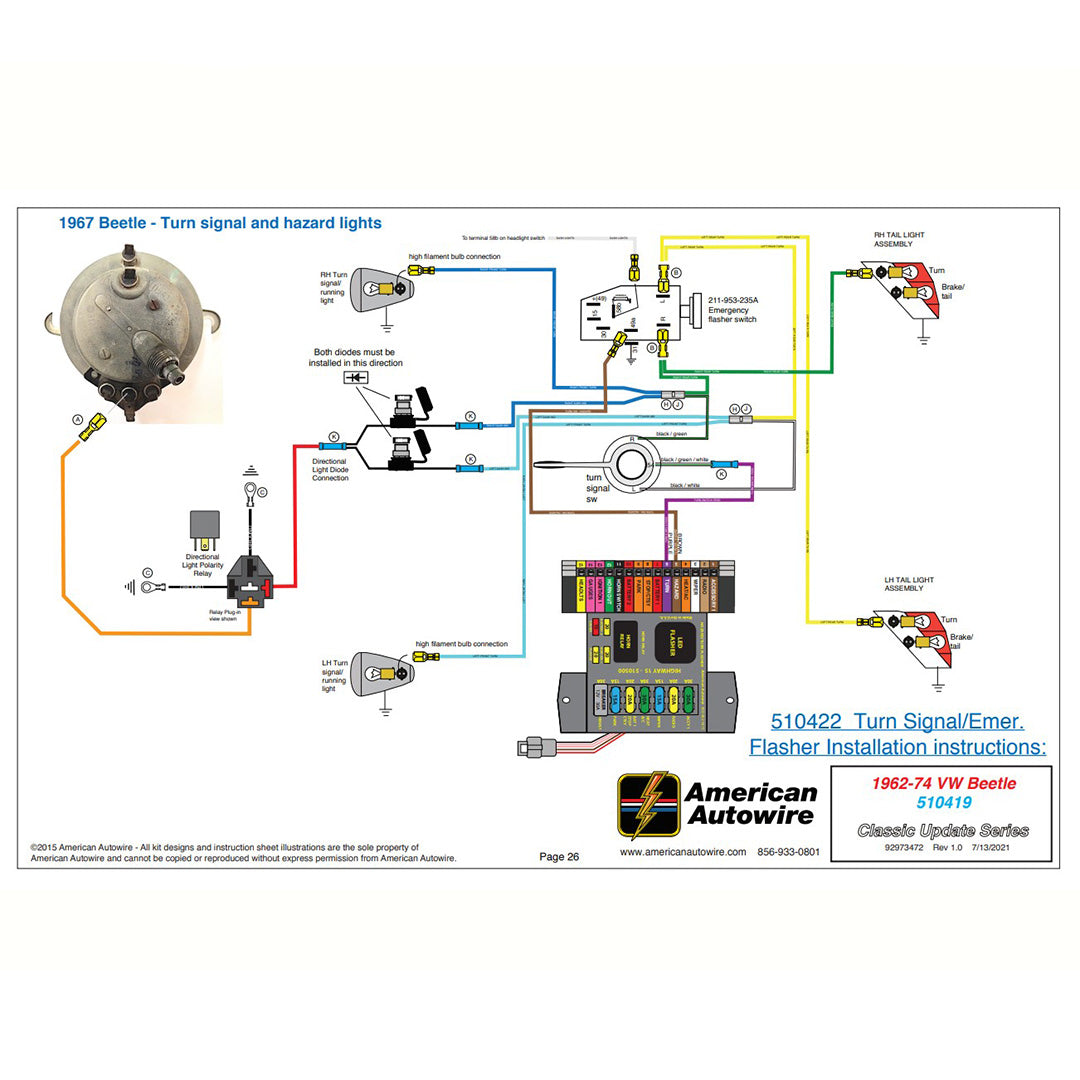

*Diodes and complete instructions to support a factory single bulb dash turn signal indicator light.
*Original-style terminals to complete connections to required switches and light assemblies.
*LED turn signal flasher.
*Electric fuel tank sender lead wires.
*Steering column connection for the original VW switch, and maintains dimmer and “flash to pass” functions.


Instruction PDF: https://smhttp-ssl-87263.nexcesscdn.net/media/productattachments/files/92973472_510419_IN_1.0.pdf
