Empi 8mm +12.7mm Longer Chromoly Head Stud Kit for Dual Port Beetle 00-4021-0

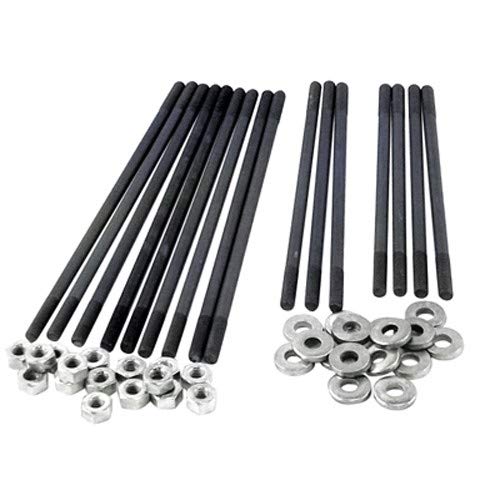

Empi 00-4021-0 stroker length chromoly head stud kit for Dual Port VW Type 1 engines. These +12.7mm longer length stud kits are used to replace head studs and hardware on dual port VW Type 1 engine cases being built for stroker and longer connecting rod engines that may have longer cylinders. This 8mm stud kit includes 4 x 198mm studs, 3 x 213mm studs, 9 x 248mm studs, 16 x M8 nuts and 16 x M8 head washers.

Fitment: This kit is meant for custom stroker builds using taller than stock cylinder liners and/or long connecting rod builds. This will fit a 8mm engine case being built into a stroker engine. VW Transitioned from 10mm studs to 8mm studs during the 1972-73 years so make sure check your engine case.

Tech Tip these were originally installed into factory mounted case savers. Torque 8mm head nuts first to 7 ft-lbs, then finish to 18 ft-lbs.

Empi 00-4010-0, 0040100, 4010, 1223

SKU	EMP-0040210
Ships From	Stock
Oversized Shipping Required	No
